Fast Plug-and-Play Deployment
Integrates directly with compatible Dobot CRA Series robots and DobotStudio Pro, reducing setup time with intuitive graphical configuration and minimal programming.
1
of
3
Loading...
My Store | SKU:
1200000225
VX500 Smart Camera
Regular price
$2,995.00
Unit price
✔ Free Technical Support
✔ Authorized Dobot Distributor
✔ Manufacturer Warranty
VX500 Smart Camera
Regular price
$2,995.00
Unit price
Description
Description
VX500 Smart Camera
The CRA series represents the latest advancement in collaborative robots, featuring high-performance integrated joints that boost cycle times by 25%, delivering exceptional efficiency. The new control cabinet and DobotStudio Pro system software provide a significant upgrade in safety, stability, and scalability, elevating human-machine collaboration to unprecedented heights.

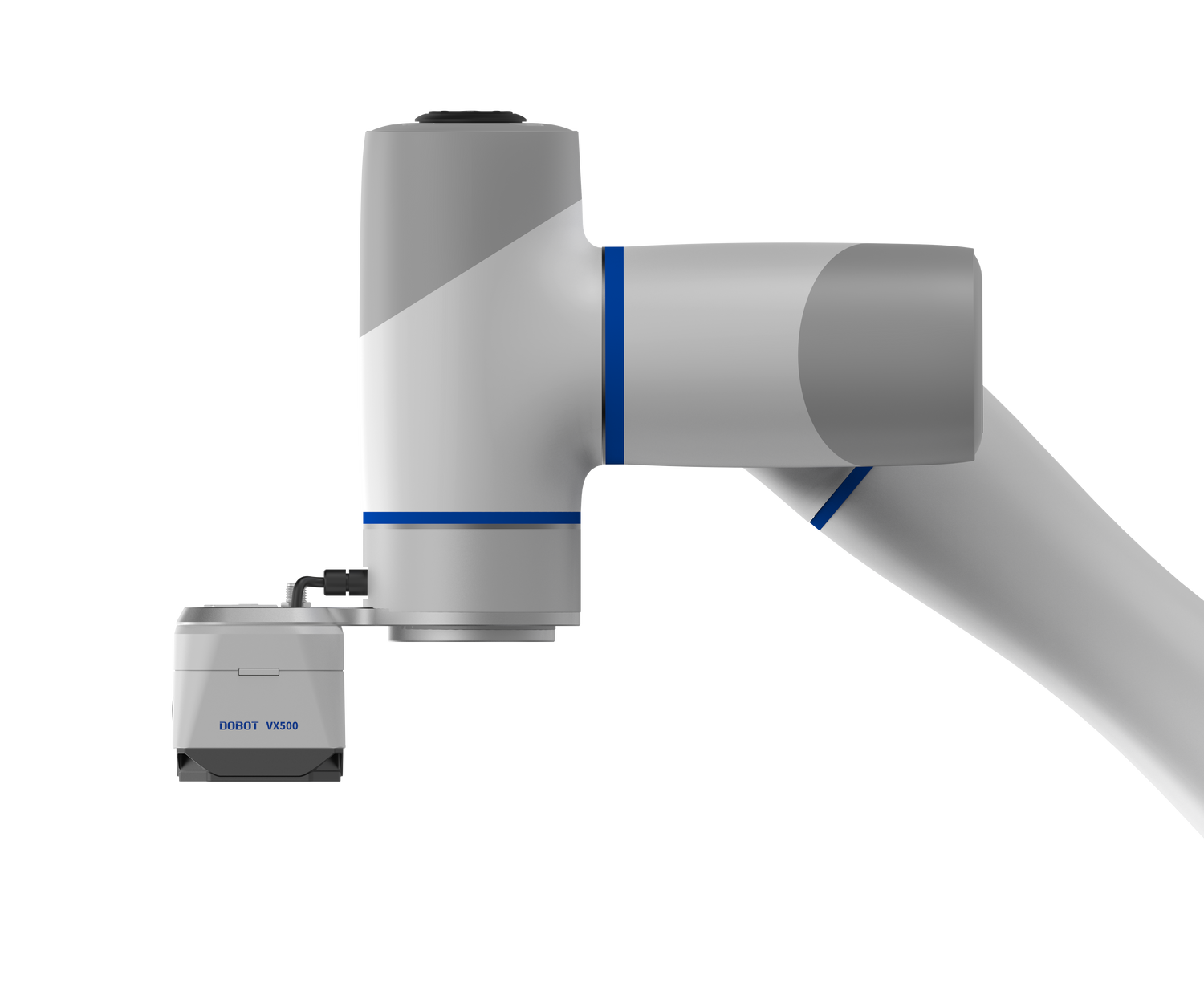

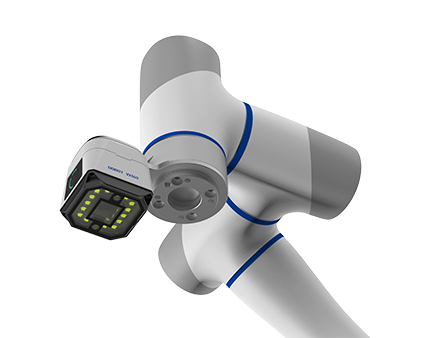

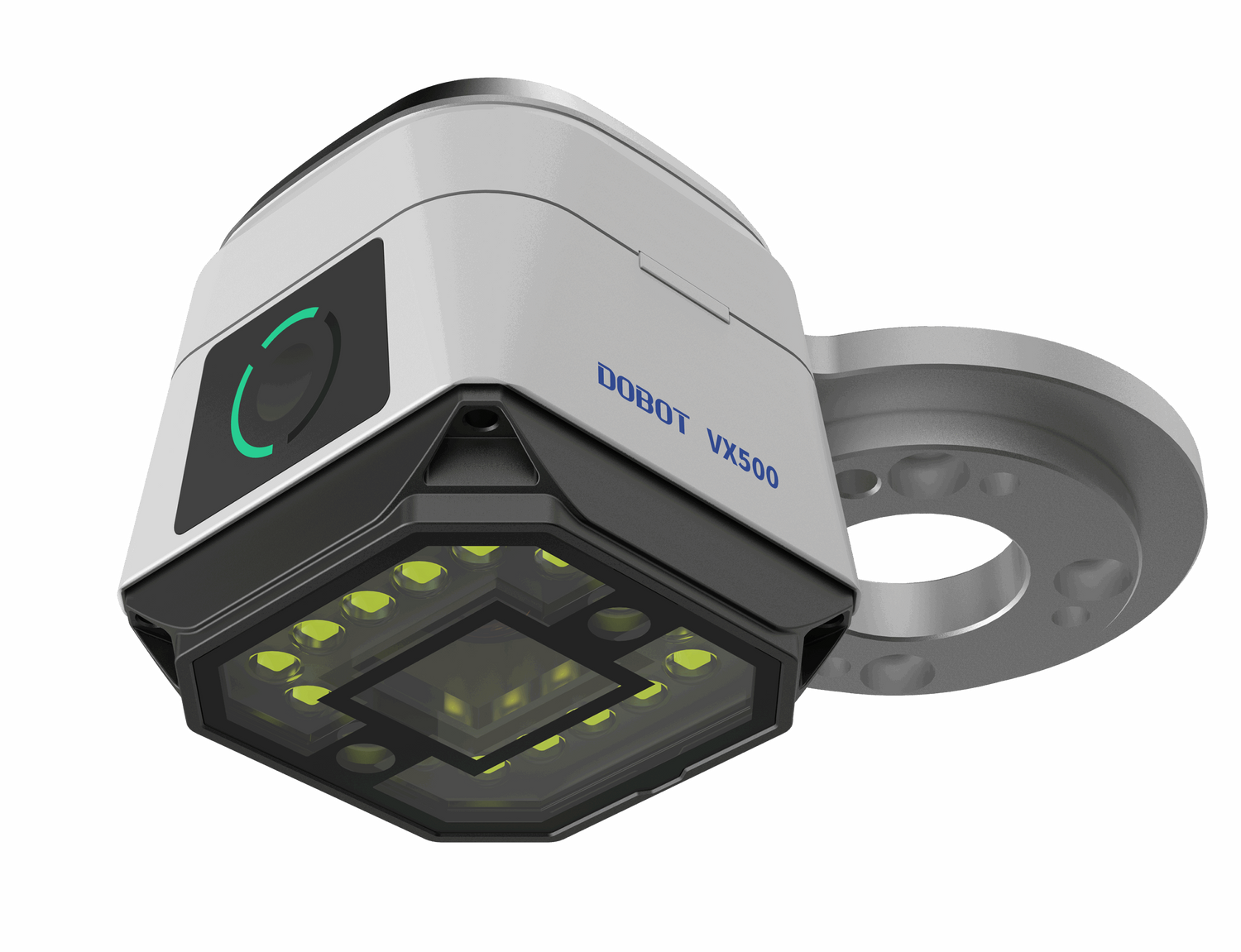

The VX500 Smart Camera, equipped with a 5-megapixel sensor and an LED light source, utilizes Dobot’s proprietary 2.5D spatial compensation technology to achieve a positioning accuracy of ±0.26 mm. This technology is ideal for various applications, such as grabbing objects on slanted surfaces, fixed-position assembly, AMMR robot transportation, and loading/unloading tasks. Its user-friendly visual operation software simplifies deployment and eliminates the need for complex development.
- Sensor Type: CMOS, global shutter
- Pixel Size: 3.2 µm × 3.2 µm
- Sensor Size: 1/1.7″
- Resolution: 2368 × 1760
- Pixel Format: Mono 8
- Color: Black & white
Key Benefits
Intelligent Vision Inspection
Perform part positioning, barcode reading, character recognition, dimensional measurement, and inspection using multiple built-in vision tools in a single smart camera.
High-Precision Vision Guidance
Achieve accurate robot positioning with a 5 MP smart camera and Dobot's 2.5D spatial compensation technology, delivering positioning accuracy up to ±0.26 mm.
